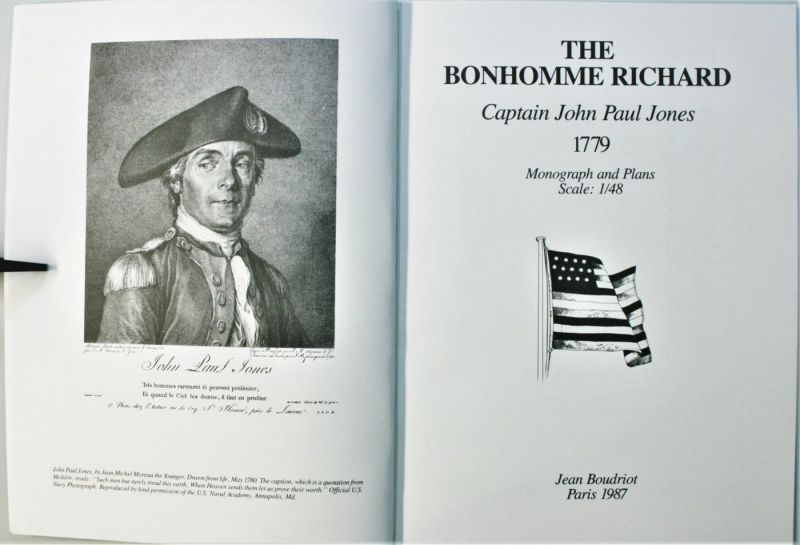

BONHOMME RICHARD – 1779 - scale 1:48

A 64-page brochure, 24x31cm format, including:

- John Paul Jones, US NAVY vessel captain
- The battle of Cape Flaniborough
- Remarks on reconstructing Le Bonhomme Richard
- Commentaries on the plates
- Rigging rules
- Guns
- Note on metal works
- Marks and flags, paint
- Presentations of models
- The designs are intended to facilitate construction of the framework.

Set of 26 plates at 1:48 scale
(except plates 24, 25 and 26 at 1:64 scale) including:

- Frame, waterlines, sections
- Wooded frame, structure
- Layout of the structure of the hull, drawing of all frames at 1:48 scale
- Design of decks

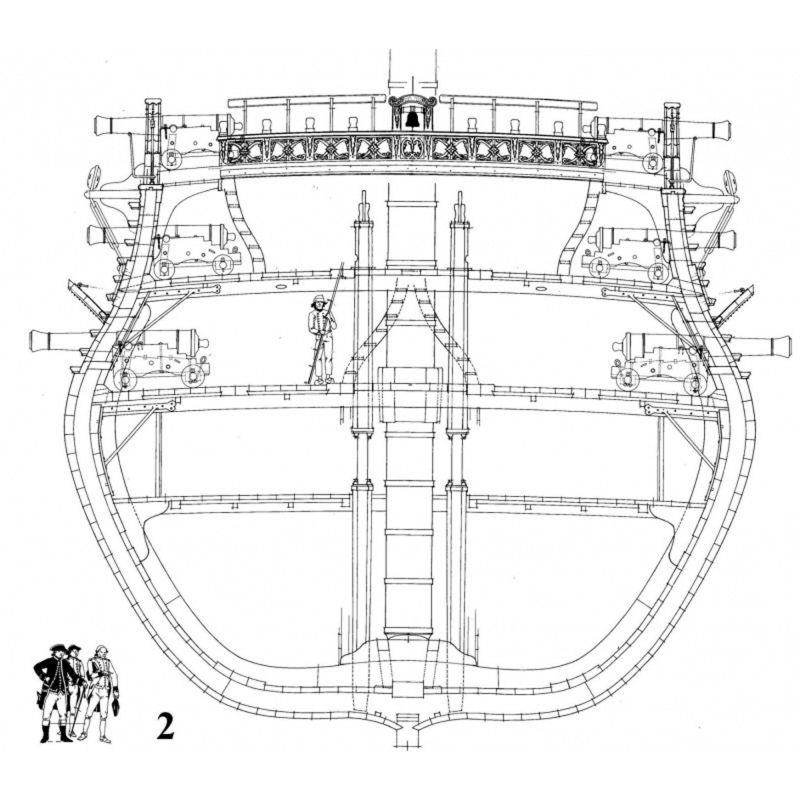

- Cross and longitudinal sections
- Ship's boat, anchors, guns
- Fittings
- Masts and spars, rigging, sails
- Definition of the hull at 1:64 scale
