MONOGRAPHIE DE LA BELLE – Barque –1680

PRESENTATION OF THE MONOGRAPH

VOLUME: 24 x 31cm format, full grey-blue cloth strong binding, laminated inside dust jacket.
160-p. (including 22 color pages) square spine pasted and sewn booklet, 160 gr. offset paper.

The plates are already reproduced in the hardback volume at 1:48 scale.
They are gathered here to build the model at 1:36 scale.

1. Elevation
2. Horizontal sections
3. Vertical sections
4. Frames (1)
5. Frames (2)
6. Longitudinal timbers
7. Frame elevation
8. Bow timbers
9. Stern timbers
10. Cross sections
11. Longitudinal section
12. Deck, first stage
13. Deck second stage
14. Deck third stage
15. Fitted elevation
16. Front et rear views

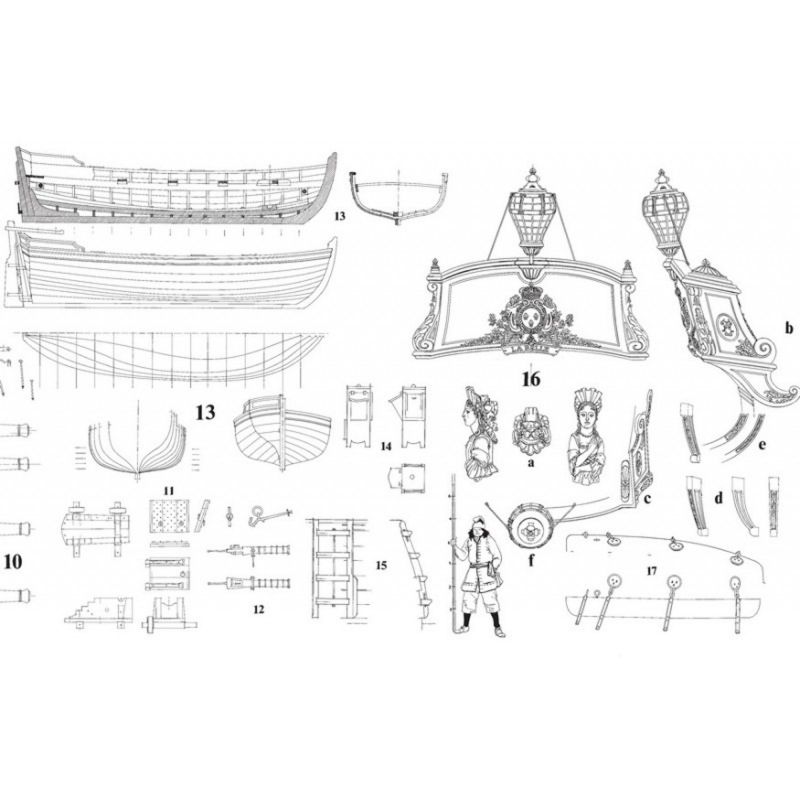

17. Fitting, guns, décoration etc.
18. Mast and spars, rigging
19. Sails (1:48)
20. La Belle sailing (1/36e)

Translated by François Fougerat

According to M.B. Frölich this model can be built by motivated beginners in ship’s model building

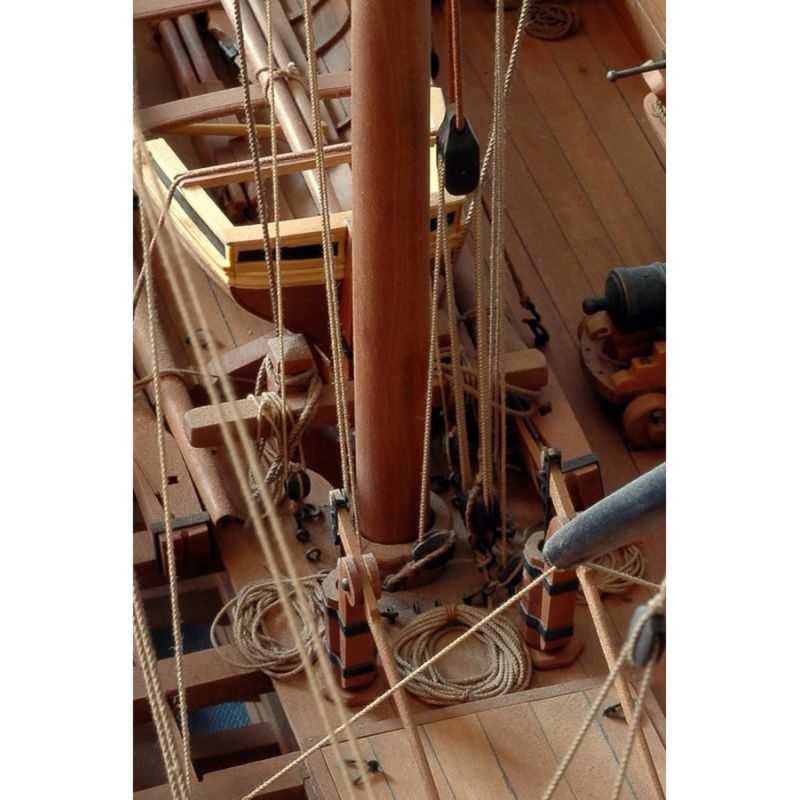

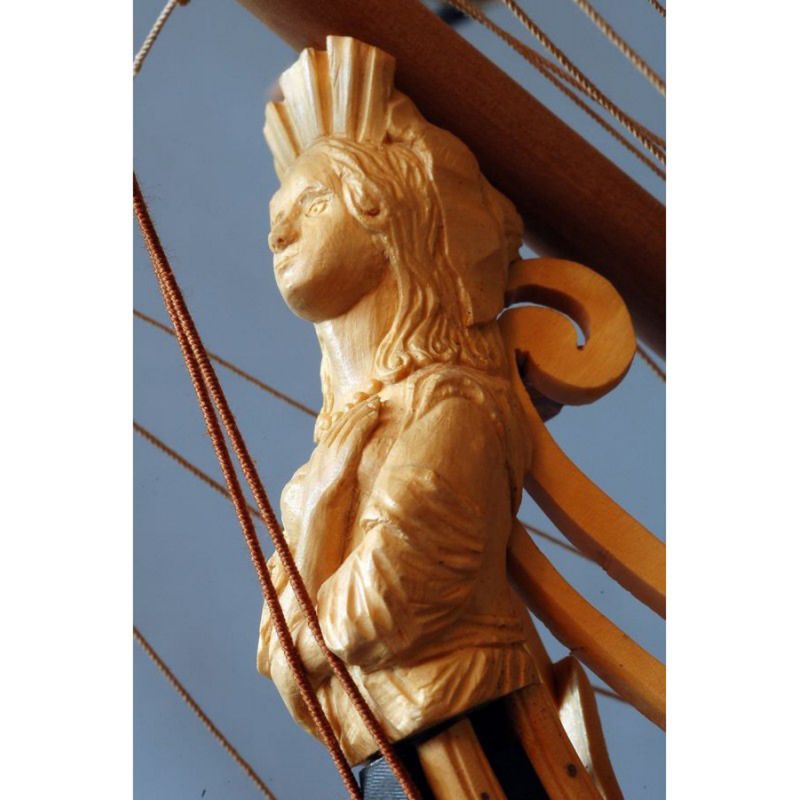

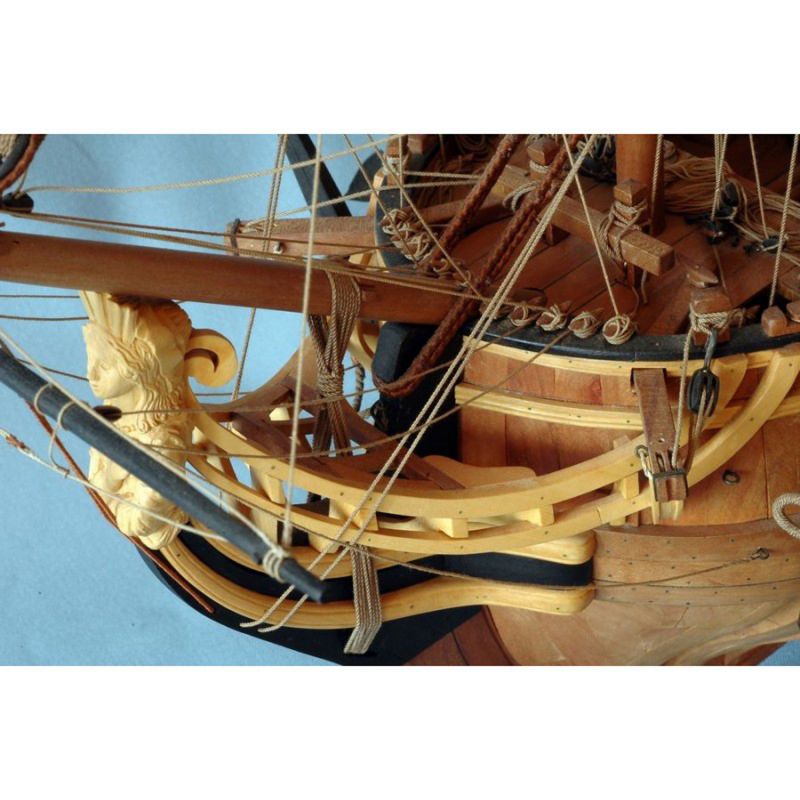

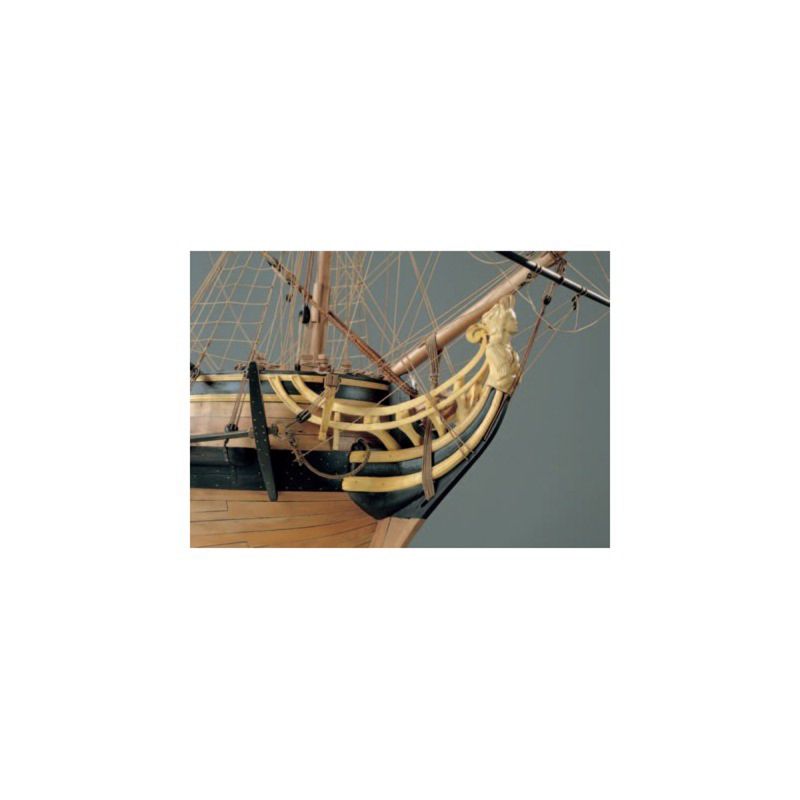

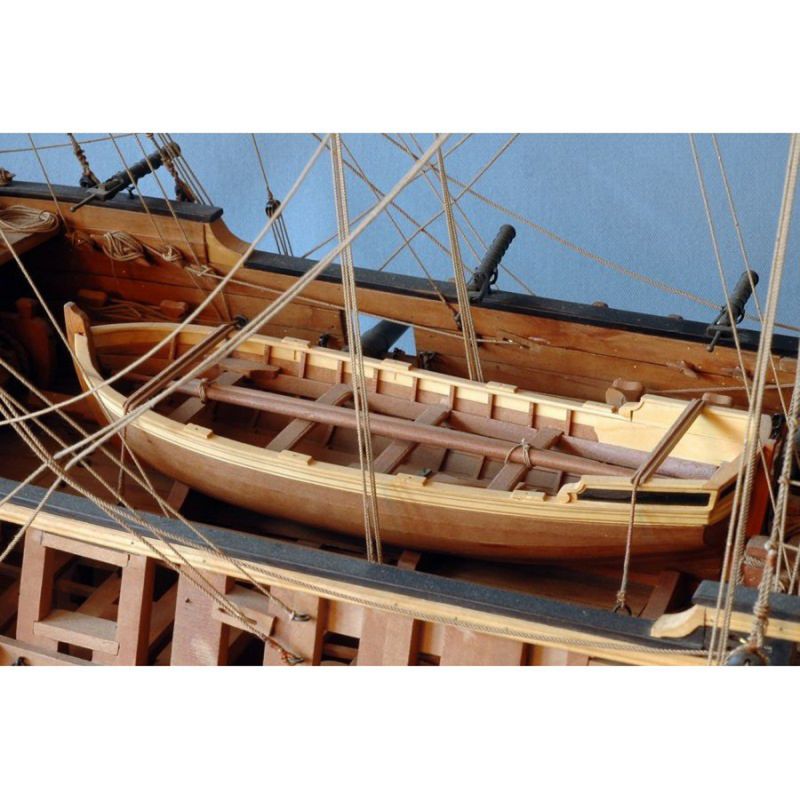

Photos du modèle de M. Frölich (Photographe: Olivier Gatine)
