S. Caterina – Pointu Méditerranéen – 1759
Traditional Mediterranean Fishing Vessel.

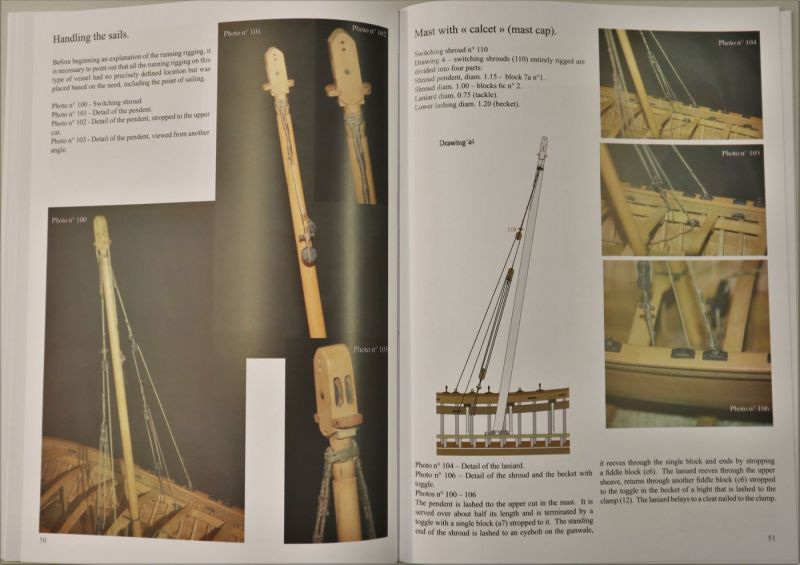

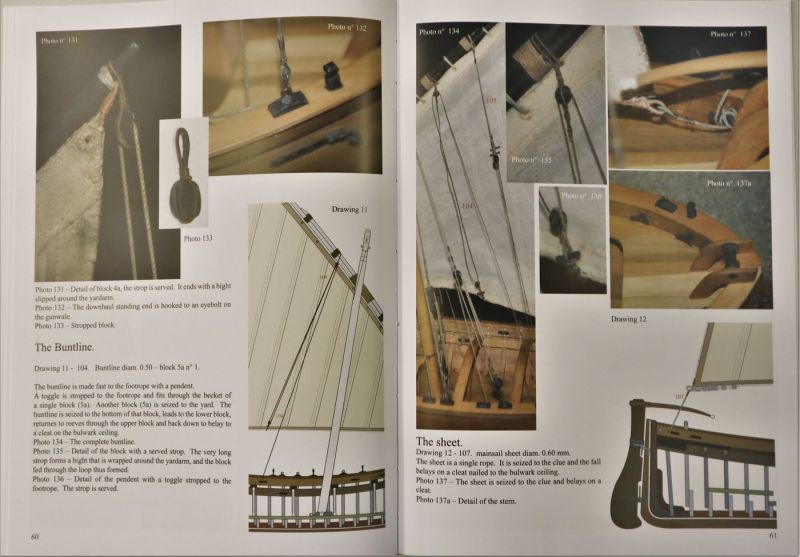

A 72-page booklet including 42 pages in full color, on the construction of
model, along with 19 drawings and 183 color photographs.
The monograph contains the 11 plates at the 1/12 and 1/24 scales necessary for the construction of the timber frame.
A 72-page booklet including 42 pages in full color, on the construction of
model, along with 19 drawings and 183 color photographs.
The monograph contains the 11 plates at the 1/12 and 1/24 scales necessary for the construction of the timber frame.
COMPOSITION OF THE MONOGRAPH
Cardboard shirt with flaps.
A 72-page booklet in 23x31 cm format including 56 pages in full color.
The monograph contains the 11 plates at the 1/12 scales necessary for the construction of the timber frame.
LISTE OF THE PLATES
1 Elevation, waterlines plan, body plan.
2 Caption
3 Completed timber framing, elevation and plan view.
4 Complete frames.
5 Disassembled frames; floors and futtocks
6 Top view and inside arrangements

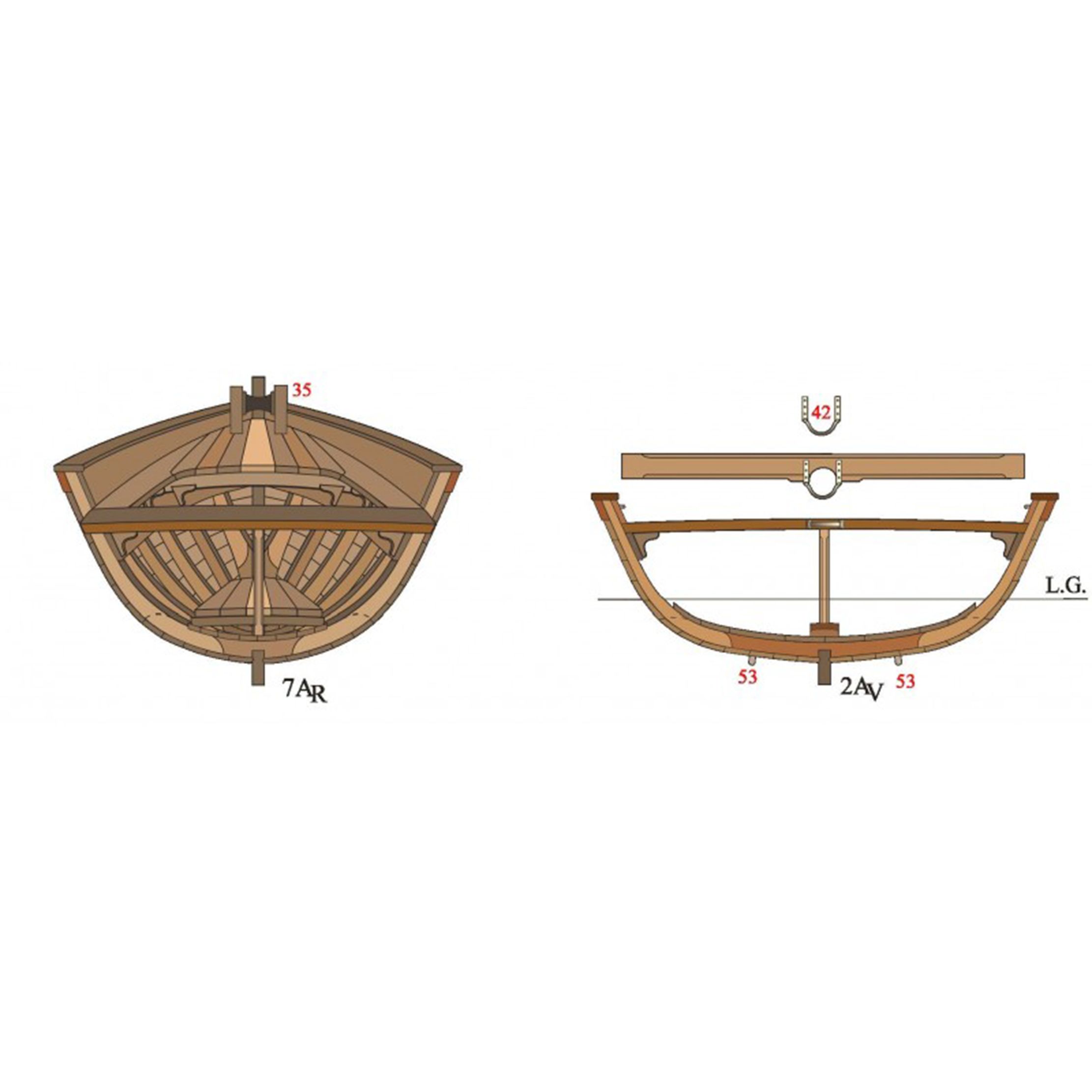

7 Top view of the hull and crosssections.
8 The completed hull.
9 Masts, lateen yard, blocks, sails, grapnel, oars, bucket, bailing scoop
10 Plan view of the hull an rigging nomenclature.
11 Hauling (beach capstan)
Translated by François Fougerat
